RXM 10

RXM 10

Horizontal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing. Particularly suitable for automatic systems controlled by pressure regulator or inverter.

SKU: RXM 10
DOWNLOAD DATA SHEETDownload the manual
Limits of use:
- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty
Engine:
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
Material:
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller Stainless Steel AISI 304
- Diffusers: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/Viton

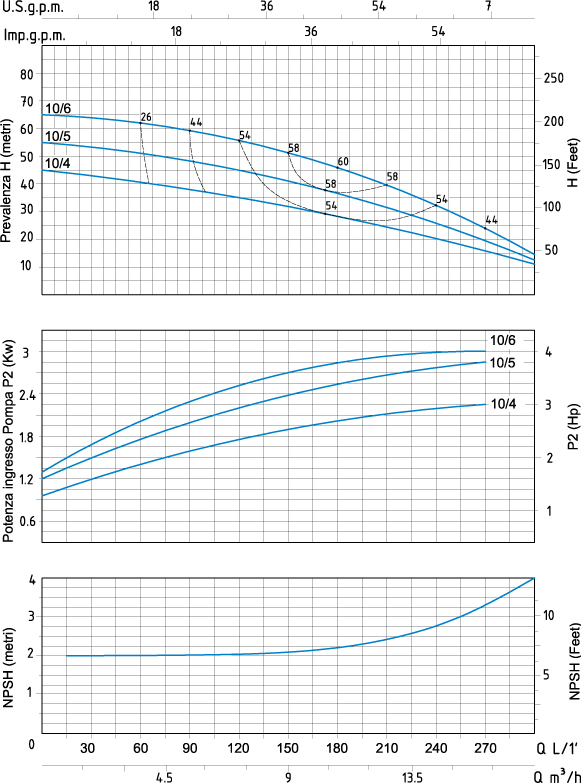

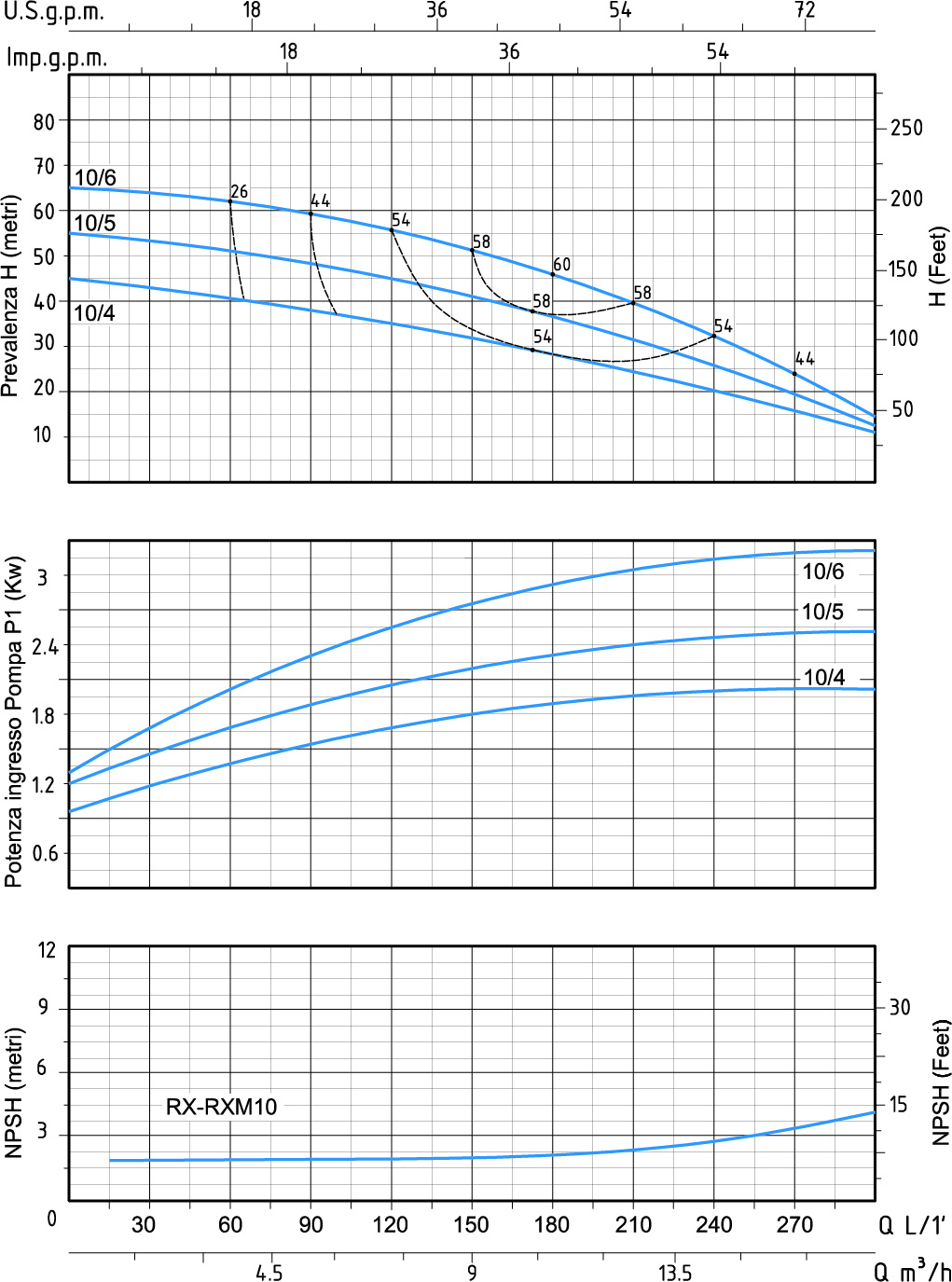

MODEL PHASE NOMINAL POWER POWER CONSUMPTION PERFORMANCE SHOUTS
HP kW kW Q (L/min) H (m) asp. mand.
RXM 10-4 Single-phase 2 1.5 2 300 44 1″ 1/2 1″ 1/2
RXM 10-5 Single-phase 3 2.2 2.5 300 54.5 1″ 1/2 1″ 1/2
RX 10-6 Three-phase 4 3 3.2 300 66 1″ 1/2 1″ 1/2
RX 10-5 Three-phase 3 2.2 2.5 300 54.5 1″ 1/2 1″ 1/2
RX 10-4 Three-phase 2 1.5 2 300 44 1″ 1/2 1″ 1/2
Weight 1.0000 kg
Applications

Residential Civil Home

Manuale

Type of fluid

Clean water

Famiglia

RXM
