2CM 32/190

2CM 32/190

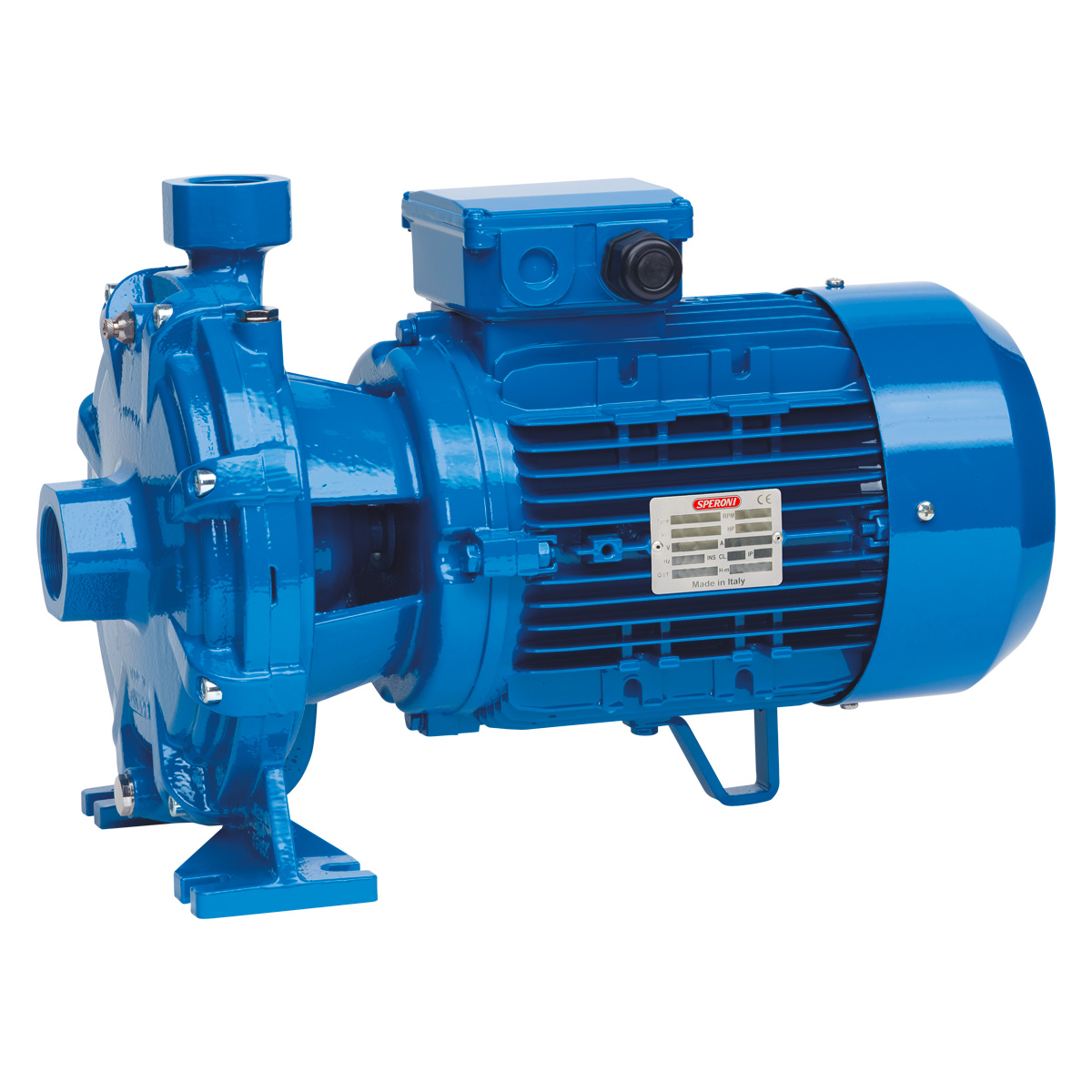

Double-impeller centrifugal electric pumps for lifting clean water and moderately impure liquids; non-aggressive for pump materials. Main feature . the use of two opposing impellers that allow, unlike the single-impeller model, high heads. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.

SKU: 2CM 32/190
DOWNLOAD DATA SHEETDownload the manual
Limits of use:
- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty
Engine:
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz P2 ≤ 7,5 kW
- Three-phase 400/690V-50Hz P2 > 7,5 kW
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
Material:
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impellers: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR

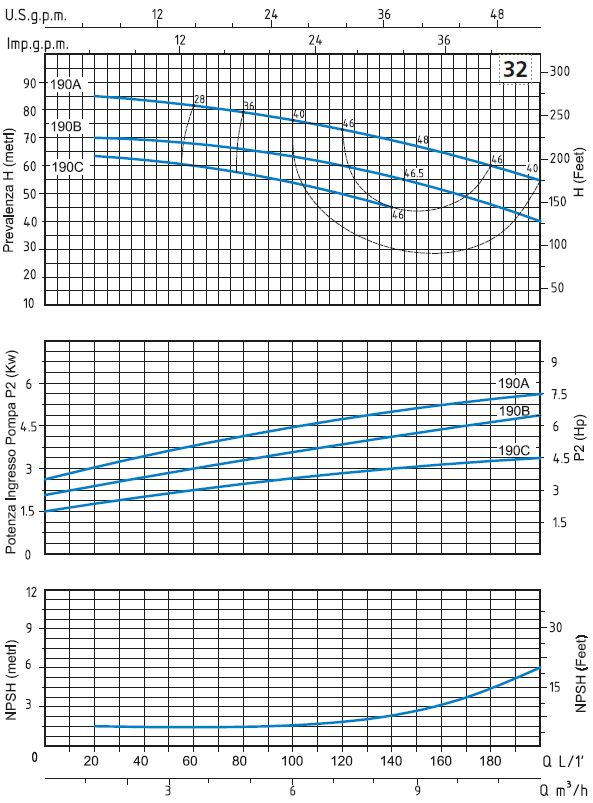

MODEL PHASE NOMINAL POWER POWER CONSUMPTION PERFORMANCE SHOUTS
HP kW kW Q (L/min) H (m) asp. mand.
2CM 32/190C Single-phase 3 2.2 3.6 140 63 1″ 1/2 1″ 1/4
2CM 32/190A Single-phase 5.5 4 6 200 88 1″ 1/2 1″ 1/4
2C 32/190C Three-phase 3 2.2 3.6 140 63 1″ 1/2 1″ 1/4
2C 32/190B Three-phase 4 3 4.5 200 74 1″ 1/2 1″ 1/4
2C 32/190A Three-phase 5.5 4 6 200 88 1″ 1/2 1″ 1/4
Weight 1.0000 kg
Applications

Agriculture and Irrigation, Industrial

Manuale

Type of fluid

Clean water

Famiglia
Immagine Personalizzata del Prodotto

2CM 32-190C.pdf

Download(868 KB)

2CM 32-190A.pdf

Download(505 KB)

2C 32-190C.pdf

Download(427 KB)

2C 32-190B.pdf

Download(440 KB)

2C 32-190A.pdf

Download(400 KB)
